产品参数

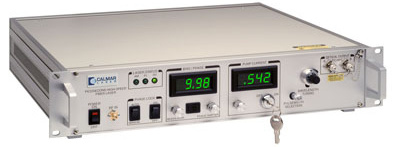

Actively mode locked laser, up to 40 GHz, picosecond pulses
Specifications
|
Product |
Tunable Rep Rate |
Pulse width |
Avg. Power |
Option |
|
PSL-10-xT |
5-20 GHz |
1.2 ~ 6 ps |
>20 mW |
Fixed Pulse Width |
|
PSL-10-TT |
5-20 GHz |
1.5 ~ 10 ps |
>20 mW |
Tunable Pulse Width |
|
PSL-10-AUTO |
5-11 GHz |
1.5 ~ 10 ps |
>20 mW |
Auto Mode-locking |
|
PSL-25-xT |
22-28 GHz |
1.5 ~ 10 ps |
>20 mW |
Fixed Pulse Width |
|
PSL-40-xT |
38-42 GHz |
1 ~ 5 ps |
>20 mW |
Fixed Pulse Width |
|
PSL-40-TT |
38-42 GHz |
0.8 ~ 5ps |
>20 mW |
Tunable Pulse Width |
|
PSL-40-AUTO |
38-42 GHz |
1 ~ 5ps |
>20 mW |
Auto Mode-locking |
Overview
The fiber-based picosecond laser (PSL) is an actively mode-locked fiber laser with repetition rates available from 0.4 to 40 GHz.
This laser provides a stable and reliable optical clock with turnkey operation. Along with a portable design, the Eureka series offers user-friendly front panel control knobs for flexible adjustment of wavelength and output power. The pulse width is factory selectable from 1.2 to 10ps, with transform-limited spectral width and better than -20dB pedestal. An option to adjust the pulse width from 1.5 to 10 ps is available in the C band with the PSL-10-TT model. The timing jitter is as low as 50 fs and the side mode suppression is larger than 75dB. An output power of greater than 20 mW obviates the need for an additional optical amplification stage. Options for 780 nm or 1 µm wavelength emission are also available.
An optional automatic mode-locking function is achieved by a built-in computer with proprietary software design. It provides a stable and reliable optical clock with turnkey operation. A front panel switch allows the selection of either automatic mode-locking (by computer) or manual mode-locking. The automatic mode-locking feature is especially advantageous for users not familiar with the operational requirements of actively mode-locked fiber lasers. Once the required parameters such as wavelength, pulse width and repetition rate are set by end users, the laser itself will execute mode locking automatically. The remote control software ensures ease of use via readily accessible graphical controls viewable on the computer monitor.
