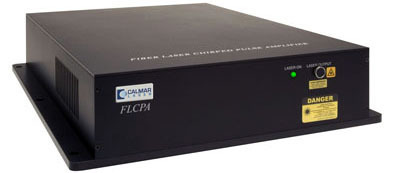

Cazadero - High Pulse Energy Femtosecond Fiber Laser (FLCPA)
Pulse energy up to 20 µJ, 100s of femtoseconds, 100s of kHz, using chirped pulse amplifiers
Specifications
|
Model Number |
FLCPA-01U |
FLCPA-02U |
FLCPA-05U |
|
Minimum Pulse Width |
0.5 |
0.5 |
0.5 |
|
Central Wavelength (nm) |
1030 ~ 1065 (selectable) |
1030 ~ 1065 (selectable) |
1030 |
|
Average Power (W) |
4 |
4 |
4 |
|
Repetition Rate (KHz) |
Up to 4000 |
Up to 1350 |
Up to 200 |
|
Pulse Energy (µJ) |
1 |
3 |
20 |
|
Polarization Extinction Ratio |
20 dB (typical) |
||
|
Output Beam (mm) |
Free space, diameter 3 (typical), M2<1.2 |
||
|
Operating Temp (°C) |
15 ~ 32 |
||
|
Operating Voltage (VAC) |
85 ~ 264 |
||
Overview
The fiber laser based chirped pulse amplification system (FLCPA) generates high energy (up to 20 µJ) ultrashort (<0.5 ps) pulses at a repetition rate of 100s of KHz for either 1 or 1.5 µm wavelengths.
The fiber laser based chirped pulse amplification system (FLCPA) starts with a 25 MHz passively mode-locked seed fiber laser, sampled down to a pulse rate of 50 kHz or higher. The short pulse is time-stretched by frequency (chirped) for amplification through a high power fiber amplifier stage at lower peak intensity. Up to 20 µJ of short pulse energy is delivered into free space. The wavelength can be selected in C-band (~1550 nm) or at 1 µm wavelengths. The typical pulse width is 500 fs. The repetition rate can be adjusted up to 4000 KHz, depending on pulse energy, with average output power approaching 4 Watts. An RF synchronization output is provided as a trigger signal. This FLCPA is lightweight, compact, and maintenance free offering a reliable cost-effective alternative to solid state laser amplifiers.
